# Fundamental of Data Science for EESS

---

## R session 07 - Time series

2020-04-13

---
layout: false
class: middle, inverse

# Outline

.font150[
* Time series in earth sciences
* Phytoplankton time series
* Manipulating dates: lubridate package
* Time series objects: tsibble and feasts packages
* Other time series analysis strategies
]

---
exclude: true

---
background-image: url(img/time_series-book-forecasting.png)
background-position: left 300px top 100px
background-size: 25%

# Installation and Resources

## Packages

### New
* lubridate
* tsibble
* feasts
* tsibbledata
* slider
* fable
* zoo
* WaveletComp

### Previously used
* ggplot2
* stringr
* dplyr
]

### Book
* Forecasting in practice Chapters 1-4: https://otexts.com/fpp3/

### Paper
* Hunter-Cevera et al. 2016. Physiological and ecological drivers of early spring blooms of a coastal phytoplankter. Science 354:326–329.
]

---
layout: true

# Time series in Earth Sciences

---
background-image: url(img/time_series-paleo_temp.png)
background-position: center middle
background-size: 80%

## Paleo-temperatures

---
background-image: url(img/time_series-paleo_temp_1000.png)
background-position: center middle
background-size: 70%

## Paleo-temperatures

---
background-image: url(img/time_series-Hawaii-CO2.png)
background-position: center middle
background-size: 50%

## CO2 in the atmosphere

---
background-image: url(img/time_series-HOT-CO2.png)
background-position: center middle
background-size: 50%

## CO2 in the atmosphere in the ocean

---
background-image: url(img/time_series-sismo.png)
background-position: center middle
background-size: 50%

## Seismic records

---
background-image: url(img/time_series-lynx-02.png)
background-position: center middle
background-size: 50%

## Ecology

---

# Marine phytoplankton  bloom (_Synechoccus_)

---
background-image: url(img/2016-Hunter-title.png), url(img/2016-Hunter-time-series.png)
background-position: right 20px top 20px, left 100px top 100px
background-size: 30%, 80%

---
exclude: true
background-image: url(img/flow-cytobot-03.jpg)
background-position: bottom 50px center
background-size: 45%

## Flow Cytobot
* Diatoms

---

## _Synechococcus_
* Discovered in 1979  - _Epifluorescence microscopy_

<img src="img/Synechococcus_BIOSOPE_Microscopy_3665.jpg" width="70%" style="display: block; margin: auto;" />
]

.pull-right[
<img src="img/1979-Waterbury-fig1.png" width="70%" style="display: block; margin: auto;" />
]
.footnote[_Waterbury, J.B., Watson, S.W., Guillard, R.R.L. & Brand, L.E. 1979. Nature. 277:293–4._]

---
background-image: url(img/flow-cytobot-01.jpg), url(img/flow-cytobot-02.png)
background-position: bottom 200px left 50px, bottom 50px right 100px
background-size: 30%, 60%

## Flow Cytobot
* Imaging and flow cytometry

---
background-image: url(img/binary_fission.gif)
background-position: center middle
background-size: 45%

## Cell multiplication
* Binary fission
* Typically once every day

---
background-image: url(img/Synechococcus_phage.png), url(img/Synechococcus_predation_dino.png)
background-position: bottom 50px left 150px, bottom 100px right 100px
background-size: 20%, 40%

## Cell disappearance
* Virus
* Predation
* Cell death (UV, nutrient deprivation)

---
exclude: true

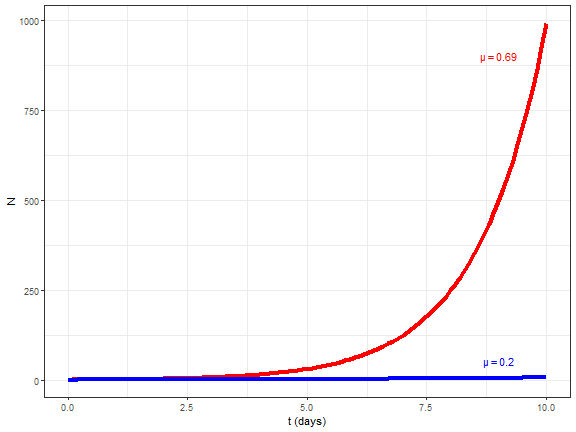

## Growth rate vs Loss rate
<br>
<br>

`\(\dfrac{\mathrm{d}N}{\mathrm{d}t}=\mu_{net}*N\)`

`\(N = N_{0}\exp^{\mu_{net}*t}\)`

`\(\mu_{net} = \mu_{growth} - \mu_{loss}\)`

* Growth rate = division

* Loss rate = cell death, predation, viruses

]

![](R-session-07-time_series_files/figure-html/unnamed-chunk-4-1.png)
]

---
exclude: true

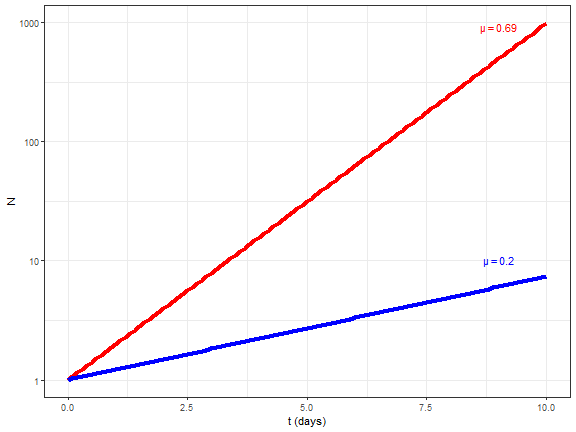

## Growth rate vs Loss rate
<br>
<br>

`\(\dfrac{\mathrm{d}N}{\mathrm{d}t}=\mu_{net}*N\)`

`\(N = N_{0}\exp^{\mu_{net}*t}\)`

`\(\mu_{net} = \mu_{growth} - \mu_{loss}\)`

* Growth rate = division

* Loss rate = cell death, predation, viruses

]

![](R-session-07-time_series_files/figure-html/unnamed-chunk-5-1.png)
]

---
background-image: url(img/2016-Hunter-Syn-01.png)
background-position: bottom 50px center
background-size: 55%

## _Synechococcus_ abundance
